Main Features:

• This emergency power supply is able to distribute power of about 10 A at least to a length of time > 30 min. after disconnecting from the input power.
• Operation: normal operation means the input voltage is feed through to the output. When the input power is cut-off, the output is further powered from the battery without any break. Note that in this state the output voltage is equal the battery voltage, which will diminish by time and load.

• The output connectors provide signals for „voltage ok“ and „failure“.
• On „failure” there is also an acoustic alarm, resettable by signal lines on output connectors

• Attention: there is no input circuit breaker, so the customer has to look for a suitable safety device in the input line.


Technical Data:

Mechanical Specifications:

This is a preliminary data sheet. Specifications are subjected to change.

Connectors:

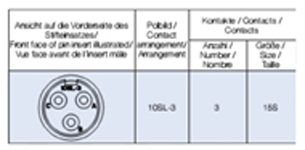

Input: VG95234A-10SL-3PN

pin assignment:

A B C

24 V DC 24 V DC RTN not connected, pin inserted

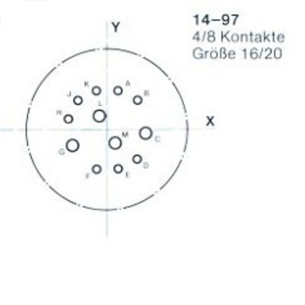

Output: SJT00RT14-97SN014 (2x)

pin assignment:

A B C D E F G H J K L M

LED_A green, „Voltage ok“ LED_A red, „Failure“ not connected, pin inserted not connected, pin inserted not connected, pin inserted not connected, pin inserted not connected, pin inserted not connected, pin inserted pushbutton „Alarm off" RTN for LED’s and pushbutton 24 V DC (load) 24 V DC RTN (load)

• Alarm Sounder is integrated.
• LED_A’s (anode connection) maybe directly powered by the device (build- in series resistor); pin „K” is the return RTN for the LED’s cathode connection.
• Pin „J”: internal 1k0 pull-up-resistor to 5 Vdc; pin „K” is the return RTN. For activation „alarm off“ the external pushbutton shorts pin „J” to return RTN pin „K”
• Grounding: one M8- bolt nearby the connectors

Technical specifications
refer to data sheet: 01116
